DGS-1024CEOL

24-Port 10/100/1000 Mbps Unmanaged Switch

Description

The DGS-1024C Unmanaged Switch is economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full duplex, this switch is ideal for quick file transfers, online gaming and smooth streaming media. It features easy-to-access Ethernet
ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover
makes connection a cinch; just plug in your cables and you™re ready to go.

Conserve Energy
The DGS-1024C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation
The DGS-1024C is Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port™s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Smooth Streaming
This switch supports QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

General features

Device Interfaces
• 24 10/100/1000 Mbps LAN ports

Standards
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity
• 48 Gbps switching fabric

Advanced Features
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9 216 byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Store and-Forward switching method
• Auto-negotiation for each port
• QoS (8 queues, strict mode)

Data Transfer Rates
• Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
• Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
• Gigabit Ethernet
  • 2000 Mbps (full duplex)

Transmission Method
• Store-and-forward

MAC Address Table Size
• 16 000

Packet Filtering/Forwarding Rates
• Ethernet: 14 880 pps per port
• Fast Ethernet: 148 800 pps per port
• Gigabit Ethernet: 1 488 000 pps per port

RAM Buffer
• 512 KB per device

Physical Parameters
LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power

Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports

Dimensions
• 282.2 x 178.0 x 44.5 mm

Weight
• 1.14 kg

Power
• 100 to 240 V AC

Power Consumption
• Power On (Standby): 6.5 watts
• Maximum: 13.5 watts

Temperature
• Operating: 0° to 40°C
• Storage: -40° to 70°C

Humidity
• Operating: 10% to 90% (Non-condensing)
• Storage: 5% to 95% (Non-condensing)

MTBF
• 247 291 hours

Maximum Heat Dissipation
• 46.04 BTU/h

Certifications
• CE Class B
• CE (LVD 2006/95/EC)

Certificates

Order info

DGS-1024C  24-Port 10/100/1000 Mbps Unmanaged Switch

Pictures

DGS-1024C/B

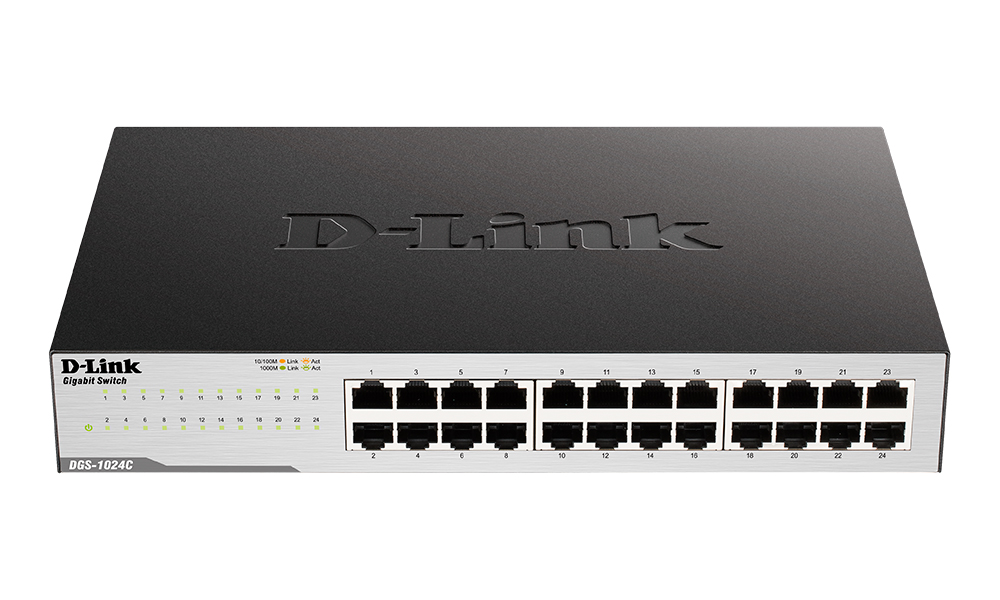

Front view

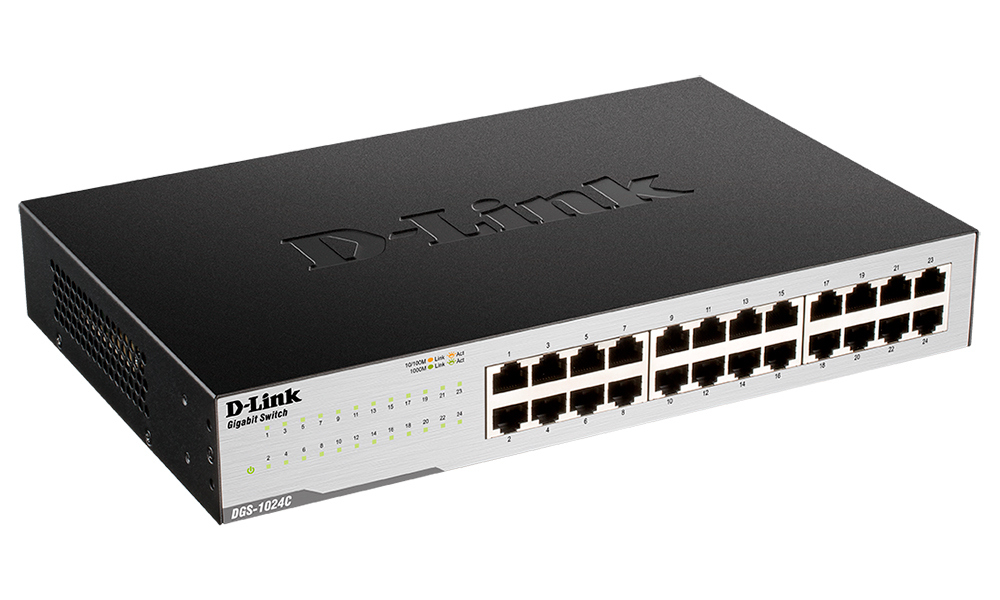

View from the right

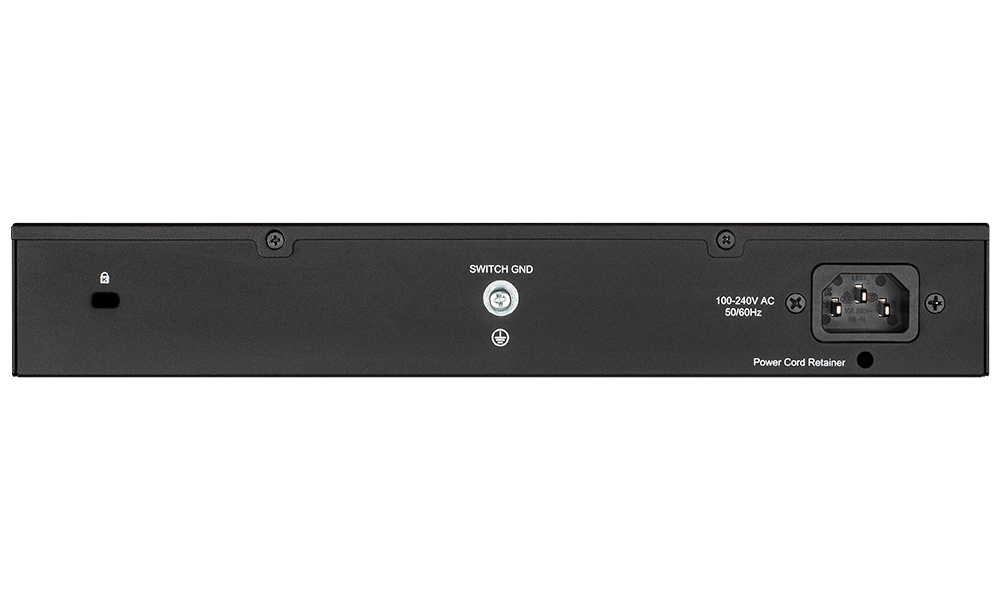

Back view
DGS-1024C/A

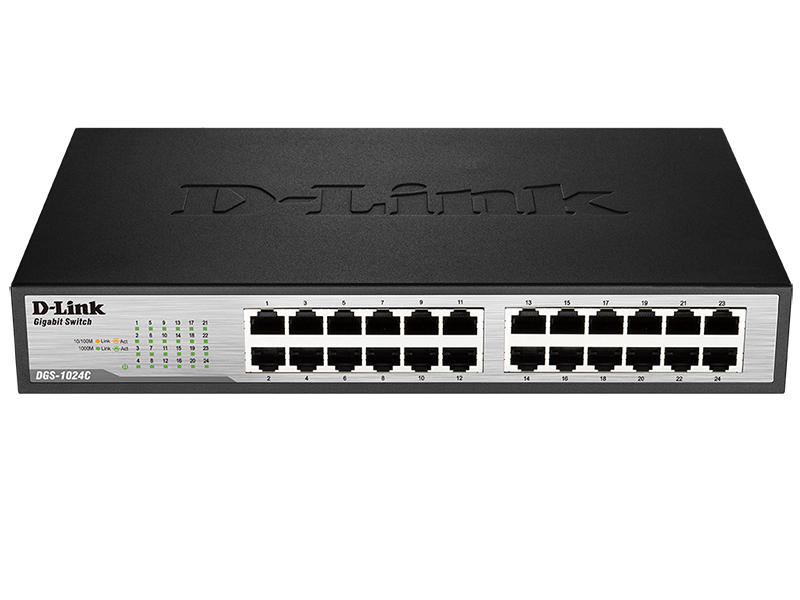

Front view

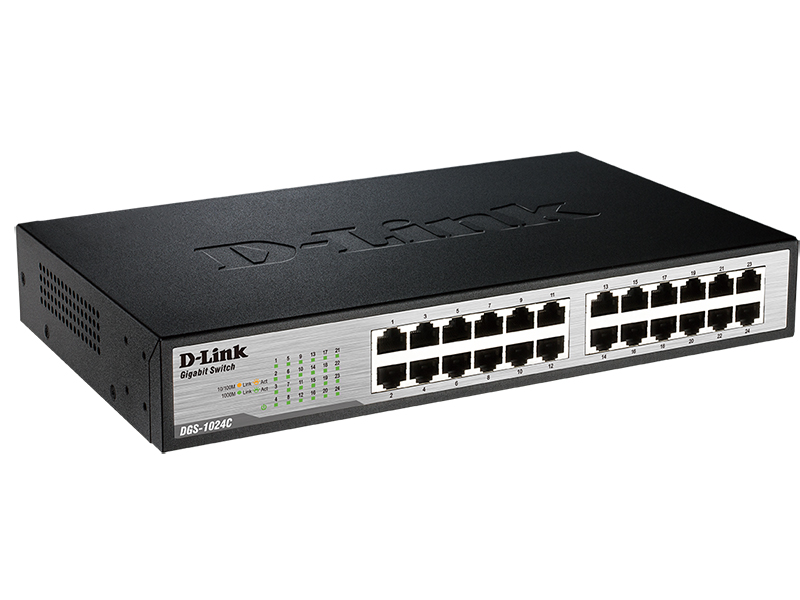

View from the right

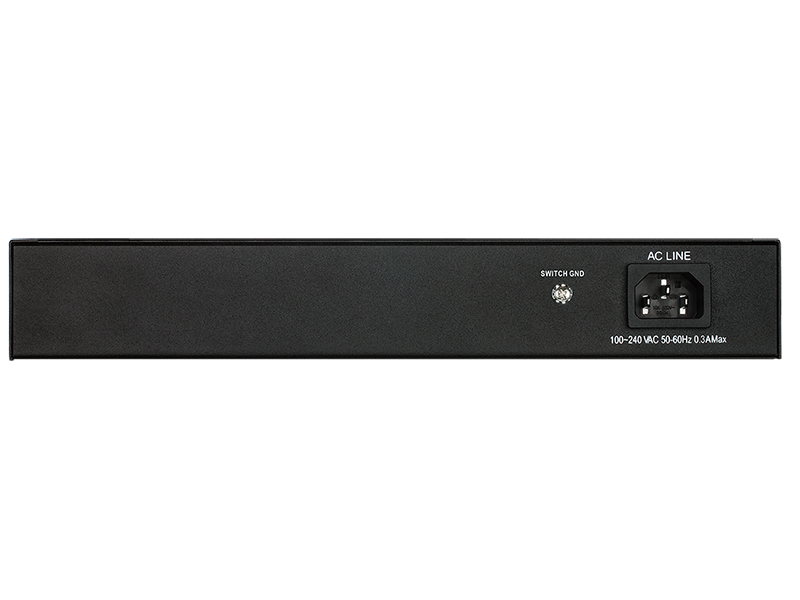

Back view
